Gunsmith to install arca plate on rifle?

[bmicek]

I’d like input from those that use an arca plate on their rifle and who they recommend to install it. Or any opinions at all on having a plate added to a rifle and where to add it on the rifle.

I hunt a lot of CRP fields so getting the rifle up off the ground is crucial, bipods don’t work for my style of hunting a lot of times. So I need to add an arca rail to my rifle. (Or so I think I do).

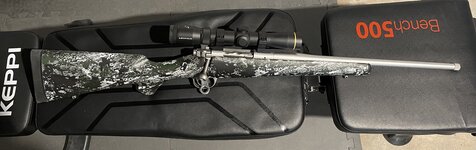

Top picture is my Kimber Adirondack 7mm-08 I want it installed on. Bottom picture is the arca plate I want installed.



[Wapiti1]

If you own a drill, you can do it yourself. It really is as simple as drilling two holes and screwing the plate on with t-nuts inside the stock. Worst case, you will have to do a little work to recess the t-nut in the barrel channel.

Jeremy



[ChrisAU]

Drilled the Manners on my CZ457 to install an Area 419 rail. Was super apprehensive about it, but then about 90 seconds later I had a rail installed on my rifle. Easy peasy. Measure 5 times, mark, drill.



[Rover31]

Not all that hard to do if you are competent with tools if not, don't, find someone who is. Doesn't have to be a gunsmith. Just needs to be someone with tool skills. I have mounted a few rails on. Take your time, make it the holes correct and straight.



[mtnwrunner]

Echo what everyone else said, super easy DIY.

Randy



[Smithb9841]

Just like others have said it’s easy. I know goHUNT has a video showing how easy this is, google installing a pic rail on your hunting stock it will be the same process just a different rail.



[MTNHUNTER76]

I would add the plate as far back from the front of stock as possible. I've added arca plates on several stocks. Very easy to do with a few basic hand tools and a drill.



[SoloWilderness]

Has anyone installed an area 419 4" Arca plate or similar on an FFT stock yet? I'm curious if it's any different to drill because of the grain of the CF?



[Alex Genereux]

I just put this on 2 of my tikka rifles. One screw goes into the sling swivel stud and tikkas have another screw hole or drill one super easy.

The Hunters Rail - Unknown Munitions

STANDARD- For all other stocks than Tikka and Bergara, including all aftermarket stocks. Each rail comes with 3 sets of 10-32 screws and claw nuts. TIKKA– Is the short hunters rail with proper hardware to install on Tikka without any mods, perfect for NRL Hunter Factory class. BERGARA– For...

www.unknownmunitions.com



[Cynoscion]

Here’s a video that will show/tell you everything you need to know. You can get your t-nuts at Lowe’s or Home Depot. I add a little glue/epoxy to the t-nuts as well.
