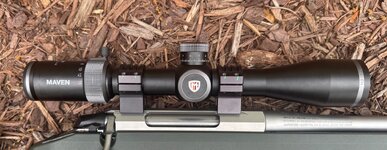

Well here is basically what I would call a finished finalized prototype. Went through 10 iterations to get here.
It's made from carbon fiber infused nylon and is rock solid. I ended up moving the knob forward so the screw would mount directly through the knob to the factory screw location. It's ~15mm tall and should have as much clearance for the bolt handle as possible using the factory mounting hole location. I even added a color filled arrow to indicate magnification like on the back of the factory metal piece.
Feel free to give me your thoughts or input.
Also wondering if there is anyone that gets way more time on their scope than me. Who would be willing to possibly field test one for me? I have a few extras made up.
