223 barrel length & speed

[ID_Matt]

With all the rage in cutting down 223's on this forum... figured a thread dedicated to length and speed would be beneficial. Not sure if one has already been started yet or if this should go in the monster 223 for moose thread!

Out of my 18" suppressed tikka, using H4895, I settled on 2805 FPS with 77 TMK and 2840 FPS w/ 73 gr eldm. Brass is only 1X fired, but not showing any signs of pressure. I am sure it is on the warm side.



[Jimbee]

Tikka superlite 18" with JK solvent trap 2752fps. 23.7gr 8208/77tmk



[Lawnboi]

20”, 23g of xbr in lapua brass made 2775 with 77tmk.

My next barrel is going to be an 18”. Honestly for me the limiting factor on my 223 is not velocity at target but the range where my wind call can’t keep up with a 4mph bullet.



[bojangles808]

blued 20inch tikka t3x lite getting 2693 fps avg factory 73grain eldm



[houser52]

20” T3x Lite Compact, 2665fps, 23.2gr XBR 8208



[Brontosaurus]

Tikka superlite 18" with JK solvent trap 2752fps. 23.7gr 8208/77tmk

How you liking the trap? Is it on the heavy side?



[rabbithuntr]

16” ar15 2740 fps 25.3 grs staball match 73 eld


Sent from my iPhone using Tapatalk



[Northpark]

16” barrel on my AR. Drives a 63gr absolute hammer at 3030fps. I’d have to look at my notes but I’m using Benchmark powder in lake city brass. It’s pretty devastating on critters.



[Jimbee]

How you liking the trap? Is it on the heavy side?

I really liked the month-ish tax stamp approval. It works just fine. I'm not a suppressor connoisseur, but I don't think it's overly heavy. Future purchases will probably be lighter and titanium, but no regrets.



[Deadspace]

16” tikka t3x pushing 77TMKs at 2725 with 24.5 grains of TAC. I’ll have some data for an 18” 223AI +P pushing 77s or 88s fairly soon.



[ID_Matt]

16” tikka t3x pushing 77TMKs at 2725 with 24.5 grains of TAC. I’ll have some data for an 18” 223AI +P pushing 77s or 88s fairly soon.

Real interested in hearing your numbers from the AI +P, sounds cool



[NSI]

Factory black hills and AAC 77 tmk numbers would be really helpful for those of us who don't reload.

-J



[Deadspace]

Real interested in hearing your numbers from the AI +P, sounds cool

I'm still waiting on the barrel. Should be done any day now, then a few weeks at unknown to get the +P treatment.



[mt terry d]

Factory black hills and AAC 77 tmk numbers would be really helpful for those of us who don't reload.

-J

I chrono'd 3 rounds from my Tikka T3x .I think is 20.4" . Whatever it comes stock.

2857
2884
2876



[DoveBlaster]

Brand new 20” PVA barrel with Nomad ti.
Churned out some 69TMK / LC brass /
CCI 400 / 24.5 gr TAC @ AR mag length on my Dillon RL1100 and they shot OK @ 2950fps. Got 100 rounds down range and now I’m going to start load dev with Lapua brass and some 77s.

The other night waiting on some pigs with my PIC.


Sent from my iPhone using Tapatalk



[justinspicher]

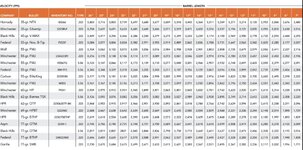

I found this on the internet, so it’s probably true right?



[Sandstrom]

Factory tikka barrel cut to 18 inches shoots black hills 77TMK ammo at average 2738 fps for me at around 1000 feet of altitude.
Ryan



[redneckbmxer24]

I chrono'd 3 rounds from my Tikka T3x .I think is 20.4" . Whatever it comes stock.

2857
2884
2876

What chrono?



[mt terry d]

MagnetoSpeed Sporter



[BLJ]

RAR at 16”
77 TMK at 2564 with a Magneto Speed.
